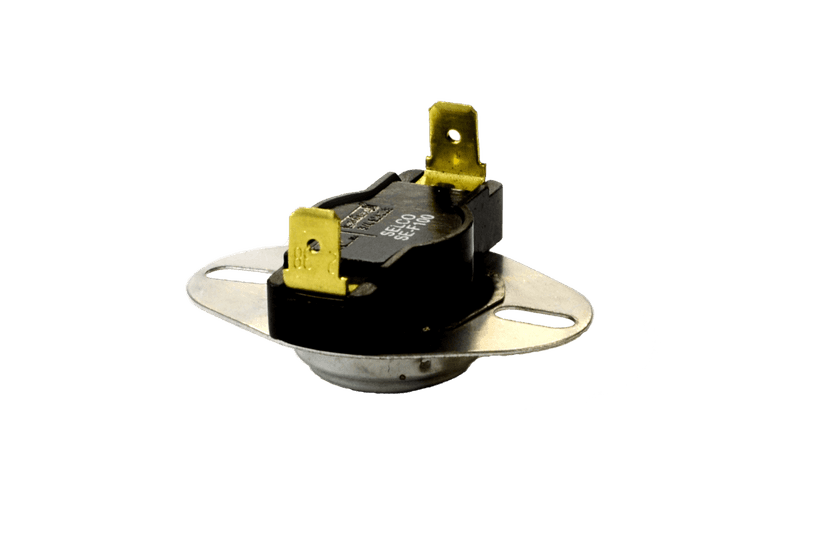

SE-L160
3/4” Disc Thermostat
3/4" Disc Thermostat, automatic reset, opens on rise 160°F ± 5°F, closes at 140°F ± 9°F, 0.250" vertical quick connects, airstream mount, 120/240VAC, 25 amps, resistive
Description
3/4" Disc Thermostat, automatic reset, opens on rise 160°F ± 5°F, closes at 140°F ± 9°F, 0.250" vertical quick connects, airstream mount, 120/240VAC, 25 amps, resistive
Specifications
| Series | SE |
|---|---|
| Type | Automatic Reset |
| Function | Open On Rise (Normally Closed) |
| Open Temperature | 160°F ± 7°F |
| Close Temperature | 140°F ± 9°F |
| Mounting/Sensing | Air |
| Electrical Rating | 120VAC, 240VAC, 25 Amps, 60Hz, Resistive |
| Environmental | 32°F-350°F (0°C-176.6°C) |
| Insulation Resistance | 100 MΩ (with a 500 VDC megger) |
| Circuit Resistance | 50mΩ or less |
| Dielectric Strength | 1.500 VAC/1 minute |
| Approvals | UL (E145478, XAPX2) c-UL (E145478, XAPX8) |
