DBN150-250BLACK
Push-On Knob D Shaft

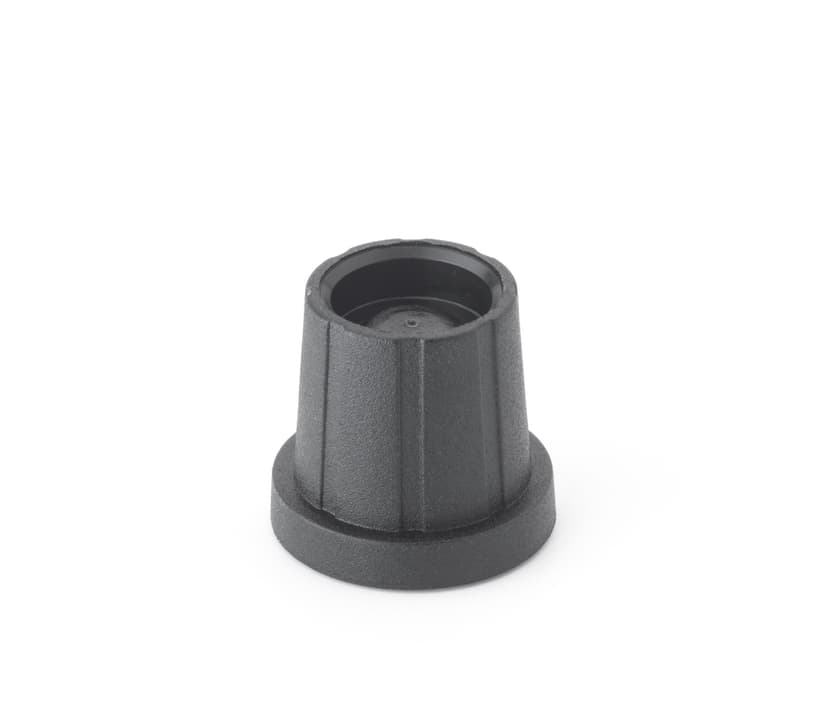

Conventional Push-On Knob with nut cover, 15mm, for .250" shaft/4mm flat, black, plain
Description
All push-on knobs are manufactured in nylon 6 matching the style of the collet series with a finely textured matte finish. All require a cap as per the collet series and sold separately (other accessories cannot be fitted). Standard colors are black and gray and other colors are available on special order. The internals securely grip a 'D' shape, splined or slotted shaft.
Specifications
| Type | Basic with Nut Cover |
|---|---|
| Size | 15mm |
| Base Diameter | 0.72" (18.5mm) |
| Shaft Style | D Shaft With Compression Ring |
| Height (with cap) | 0.72" (18.2mm) |
| Shaft Depth | 0.55" (14.0mm) |
| Shaft Size | 0.25 |
| Flat Size | 4mm |
| Printing | Without Line |
| Shaft Identification No. | 23 |
| Accessories |
