DRD157006/110BLK
Push-On Knob Integral Dial

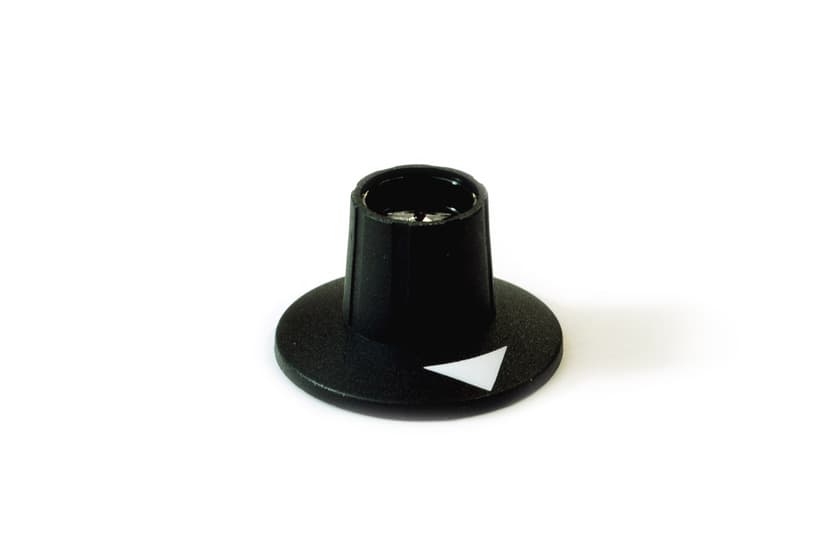

Conventional Push-On Knob with dial and white arrow at 90 degrees from the flat
Description
All push-on knobs are manufactured in nylon 6 matching the style of the collet series with a finely textured matte finish. All require a cap as per the collet series and sold separately (other accessories cannot be fitted). Standard colors are black and gray and other colors are available on special order. The internals securely grip a 'D' shape, splined or slotted shaft.
Specifications
| Type | With Integral Dial |
|---|---|
| Size | 15mm |
| Base Diameter | 1.14" (29.0mm) |
| Shaft Style | D Shaft Without Compression Ring |
| Height (with cap) | 0.72" (18.3mm) |
| Shaft Depth | 0.55" (14.0mm) |
| Shaft Size | 6mm |
| Flat Size | 4.5mm |
| Printing | White Arrow 90° From D-Flat |
| Shaft Identification No. | 26 |
| Accessories |
